Rootdown [Series VI]

The new Rootdown is a continuation of a story that has been evolving ever since we first started making hardtail frames over 20 years ago. We love the simplicity and purity of hardtails and revel in how capable and versatile they can be. The Series VI represents everything we’ve learned and evolved into this model to date! The Rootdown can be a bike for almost any type of ride and if you are looking for a 29er hardtail that delivers confidence and versatility in some of the most demanding terrain, the Rootdown is ready to deliver.


The Series VI carries forward the tried and tested geometry the Rootdown is known for with all sizing spec. remaining consistent to the previous version. New for 2024 are updates to tubing, materials, finishes, machined junction and interfaces.

160mm

29"

Steel

3 Year Warranty

Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
Rootdown [Series VI]
¥544,700 JPY Sale Save
COLOUR CHESTNUT
SIZE S
BUILD COMPLETE

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

The Rootdown is our most versatile 29er hardtail design. It includes all the features of its Canadian made sibling (Primer), in an affordable factory-handbuilt package.

☛ 4130 custom drawn tubeset and CNC dropouts and yoke
☛ 29" wheel size
☛ Post mount brake and threaded BB
☛ Evolved, progressive all mountain geometry based on 160mm fork

If you ordered a full bike, you'll have everything you need to get rolling right away, prior to some minimal setup.
Frames come with a hanger, chain stay protector and rear axle.

"The new Rootdown continues a story that has been evolving since Chromag started making hardtail frames over twenty years ago"

- The Radavist

Banner Image

Builds & Specs

• Fork // Rock Shox Lyrik Ultimate 160mm Boost 110x15mm
• Stem // Chromag HiFi BSX 40mm
• Bar// Chromag OSX 25mm Rise, 800mm
• Headset // Cane Creek Forty ZS
• Crank // SRAM GX 170mm
• Brakes // SRAM Code RSC
• Rotors // SRAM HS2 180mm
• Shifter // SRAM GX Eagle
• Cassette // SRAM GX Eagle 10-52t
• Derailleur // SRAM GX Eagle
• Rims // Chromag 29" Phase30
• Hubs // Chromag R4
• Tires // Maxxis Minion DHF/DHR
• Seatpost // RockShox Reverb
(125mm - S) (150mm - M) (175mm - M/L) (200mm - L, XL)
• Saddle // Chromag Trailmaster DT
• Grips // Chromag Format
• Chain // SRAM GX Eagle

Build options are subject to availability and liable to change without notice.

• Wheel Size // 29" or 27+
• Recommended Fork Travel // 160mm (±10mm)
• Material // 4130 Chromoly Steel
• Frame Weight (M/L) // 7.13lbs
• Hub Spacing // Boost 148mm
• Headset // 44-56 Semi Integrated
• Seat Clamp Size // 35mm
• Seat Post Size // 31.6mm
• BB // BSA 73mm Threaded
• Hanger // UDH (Included)
• Rear Axle // 180mm, M12 X 1.00mm - Boost 148 UDH (Included)
• Brake Mount // 180mm Post
• Frame Origin // Taiwan

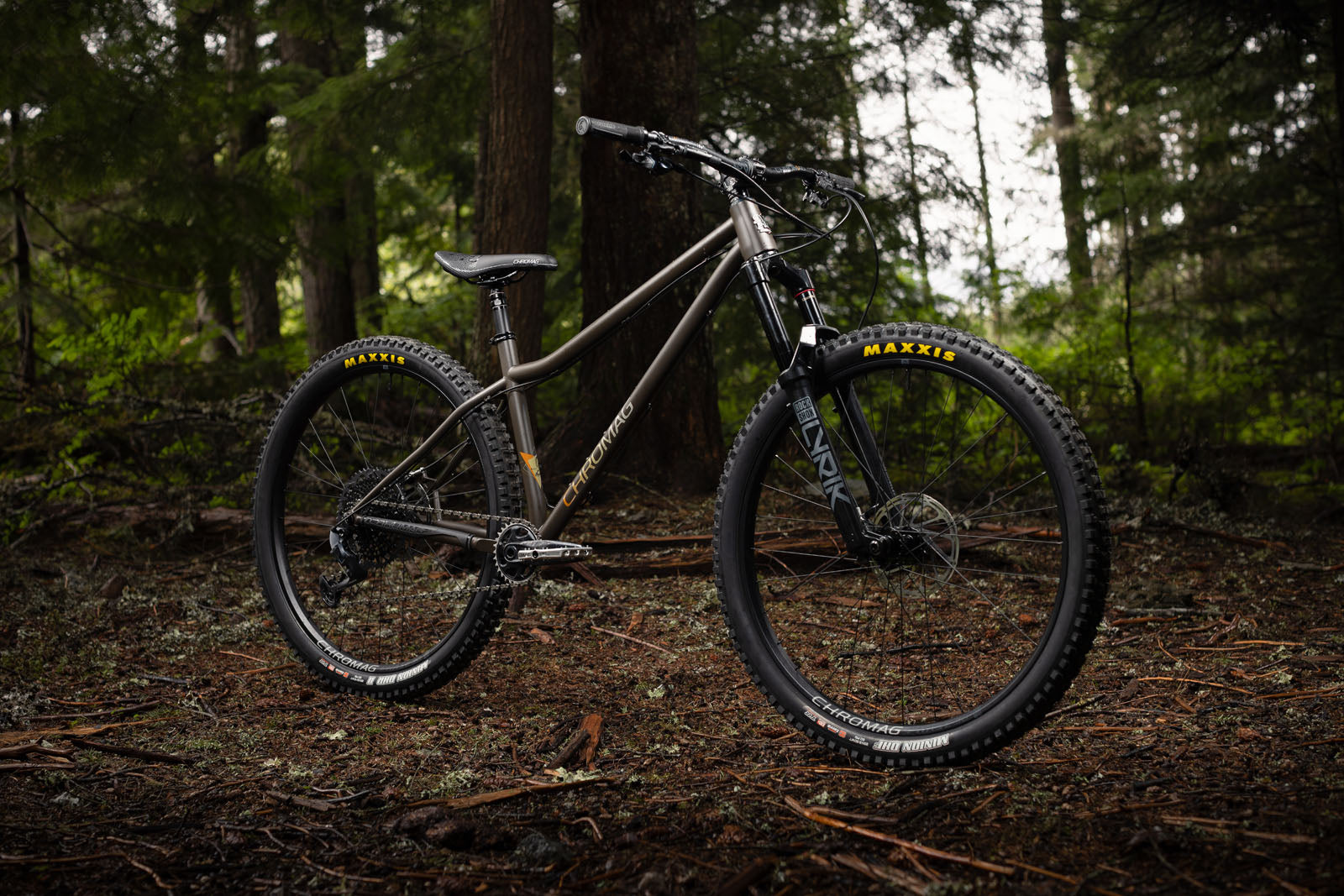

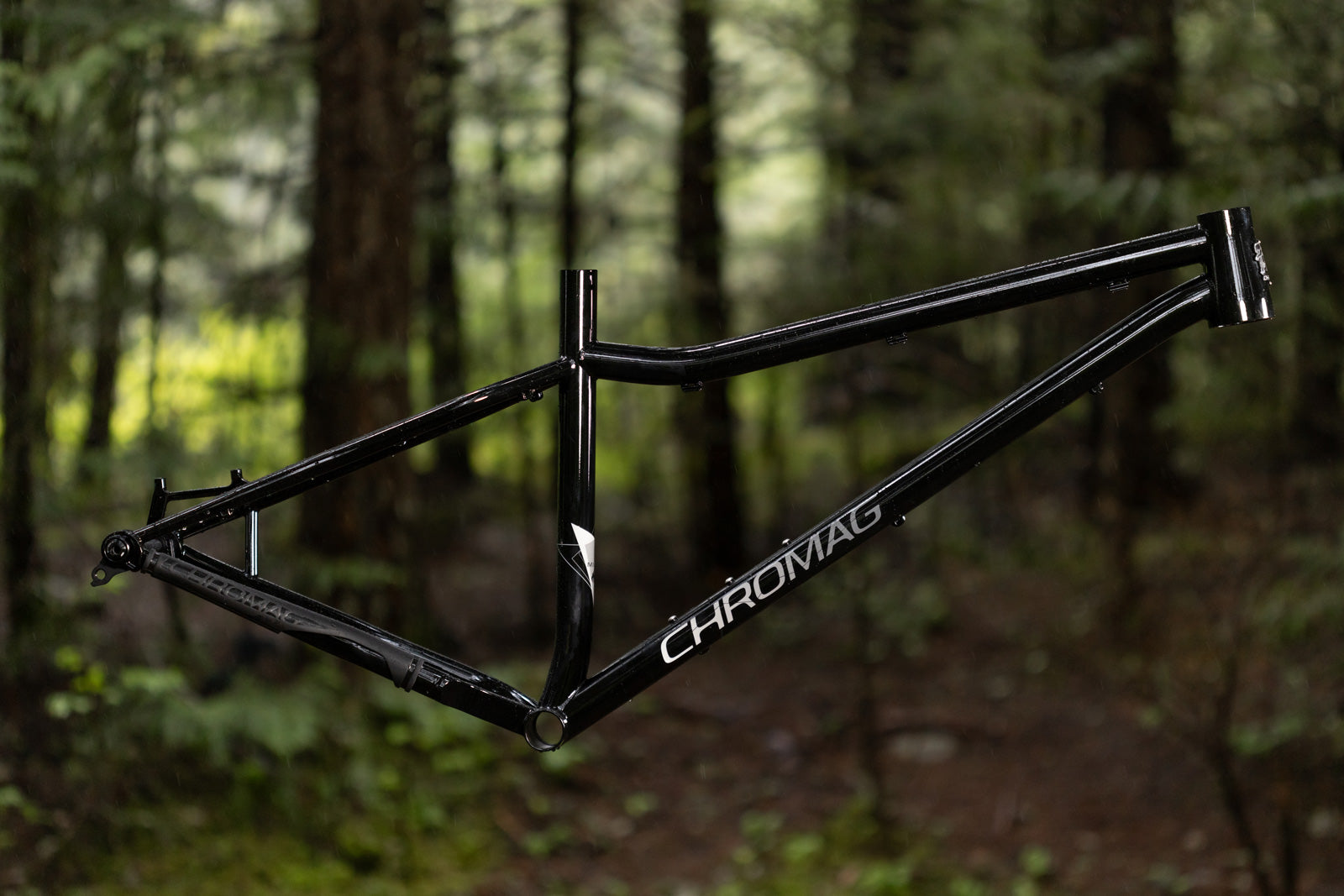

The Rootdown Series VI

There isn't much a Rootdown hasn't done. Its made for all around hardtail shredding in all kinds of trail conditions. Its a versatile All-Mountain 29er hardtail featuring premium materials, detailed construction, and progressive geometry.
The Rootdown is a versitle trail bike eager to keep going mile after mile. With confidence inspiring geometry it is both surefooted and involving. It is our best selling hardtail by far with a cult following.
The Series VI has been updated with post mount brake tabs, threaded BB and E.D. tube coating.

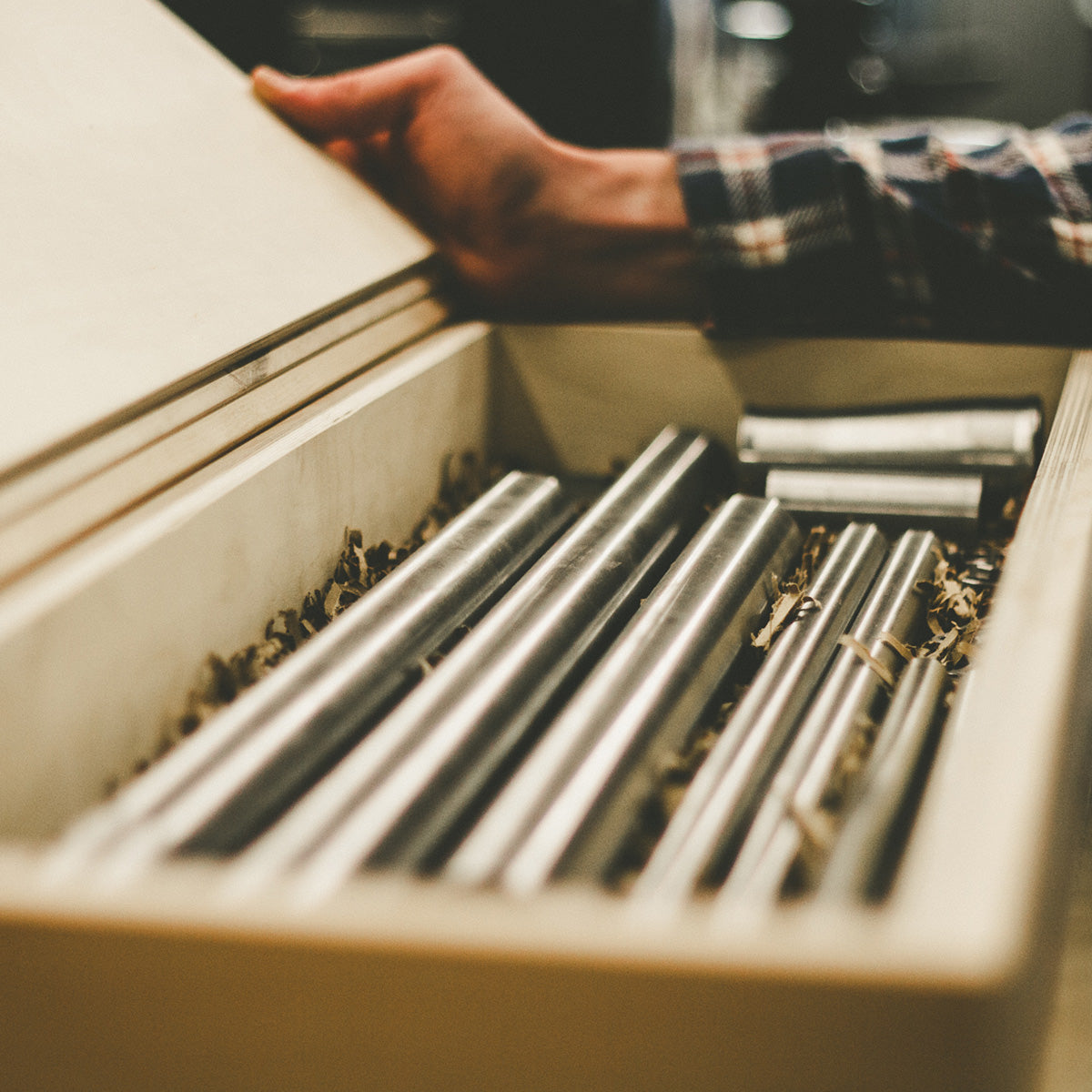

4130

The Rootdown is made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.

The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.

It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.

It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.

Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.

Electrophoretic Deposition

ED (Electrophoretic Deposition) coating is the process of applying a thin layer of coating to all surfaces of a part, both inside and out.

Our ED coating is applied by fully submerging the frame in a liquid, to which, an electric field is applied (a bit like anodising). Not only does this completely envelop the frame inside and out, but it provides an incredibly even layer of protection.

This gives our frames great corrosion protection as the inside of all tubes are also coated.

The ED coat also acts as a great primer for the paint to adhere to.

The 6th series of the rootdown has post brake mounts, threaded bb, and our new E.D. undercoating

key features

CRAFTSMANSHIP

We've never tried to hide the fact some of our products are made in Taiwan, in fact, we're proud of it.

Our Taiwanese partners are incredibly skilled and some of the best in the business.

As you would expect, these products are held to the same strict standards that we're renowned for.

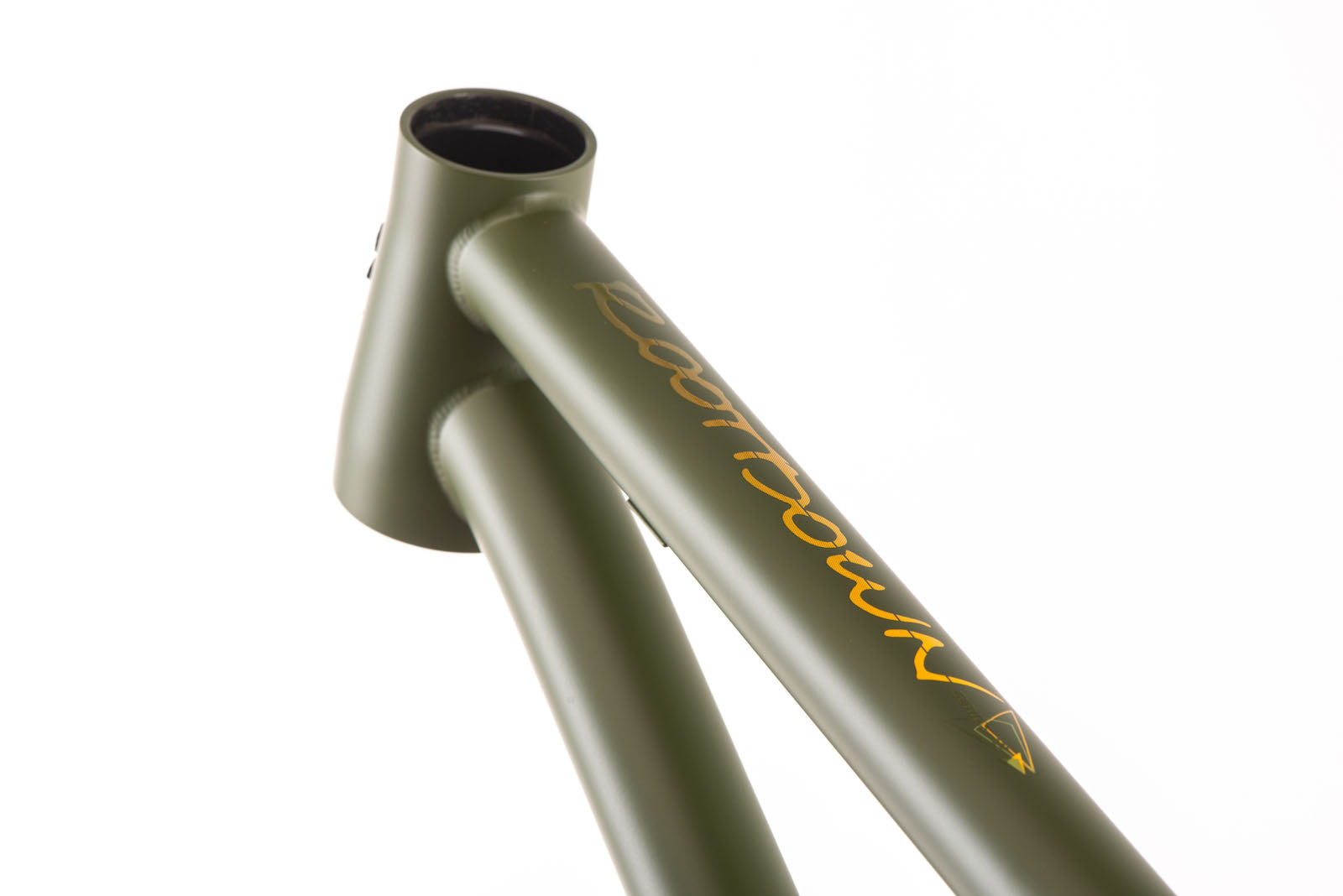

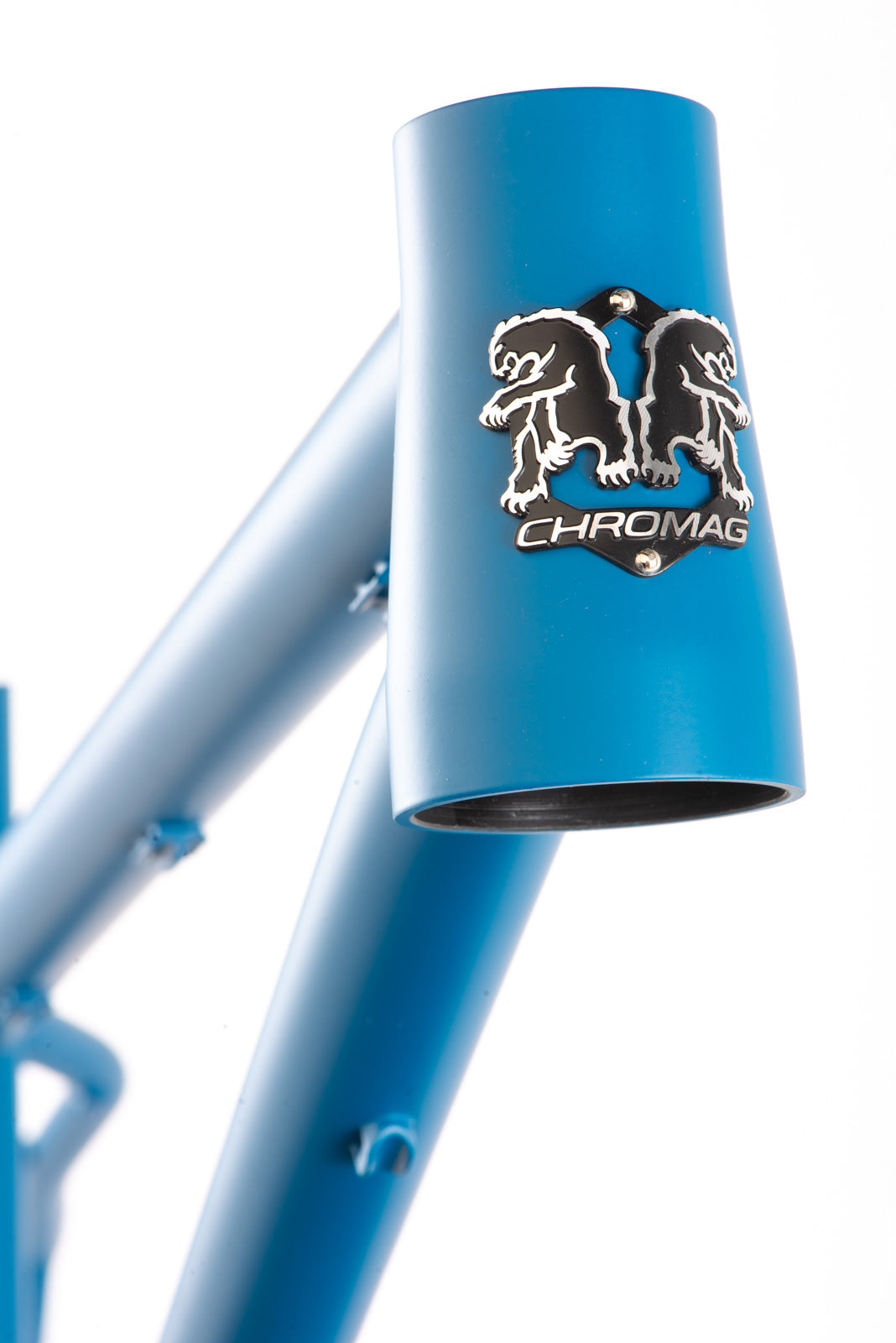

HEAD TUBE BADGE

Your bike is special. The head tube badge is the finishing touch so we’ve always made a point of taking the time to do something interesting with it. Our head tube badges have changed over the years and are an indication of the time each bike was made.

Whether it’s a cast bronze, or polished stainless steel, water cut aluminum or a 3D CNC carving, each one represents our commitment to detail.

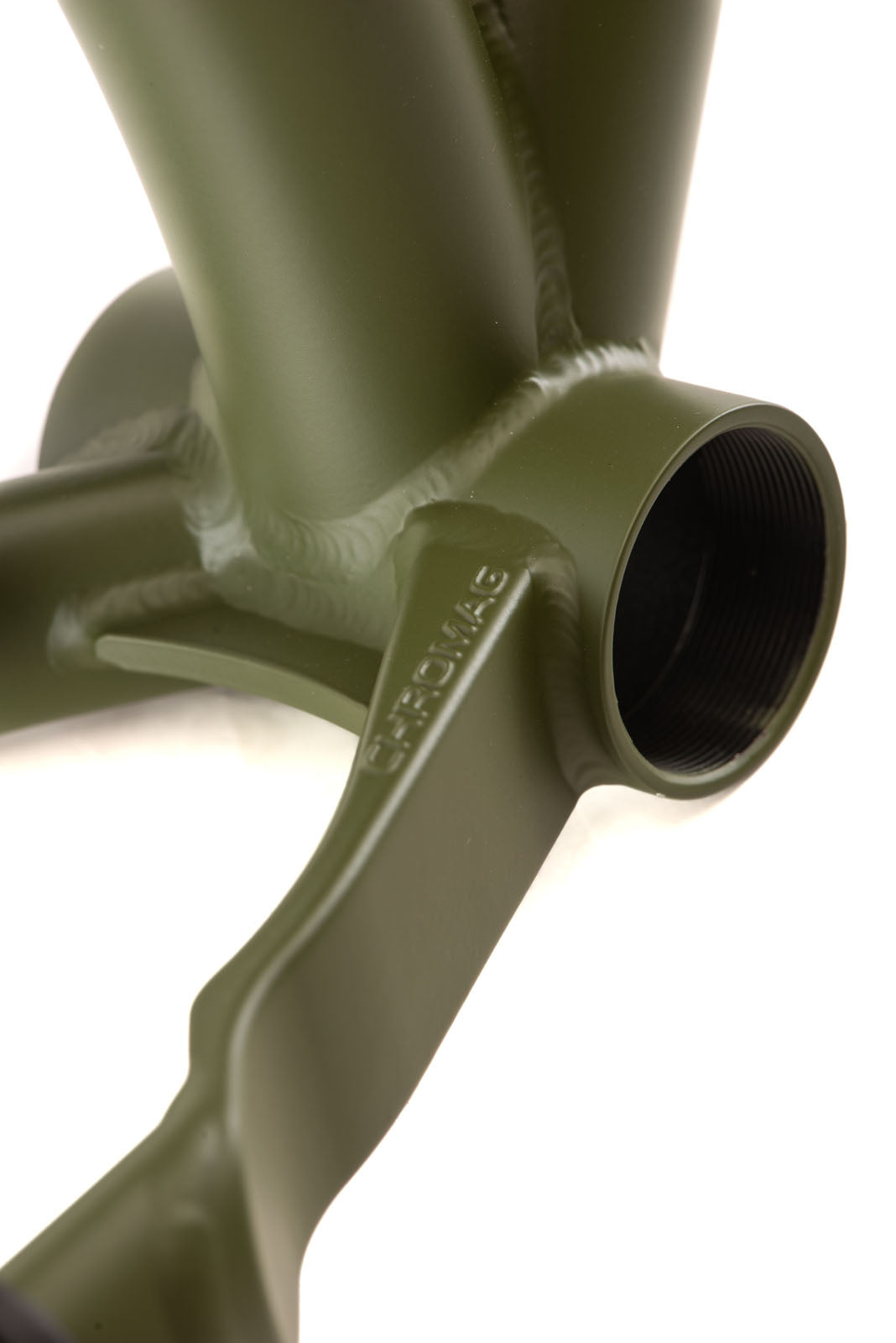

Post Mount

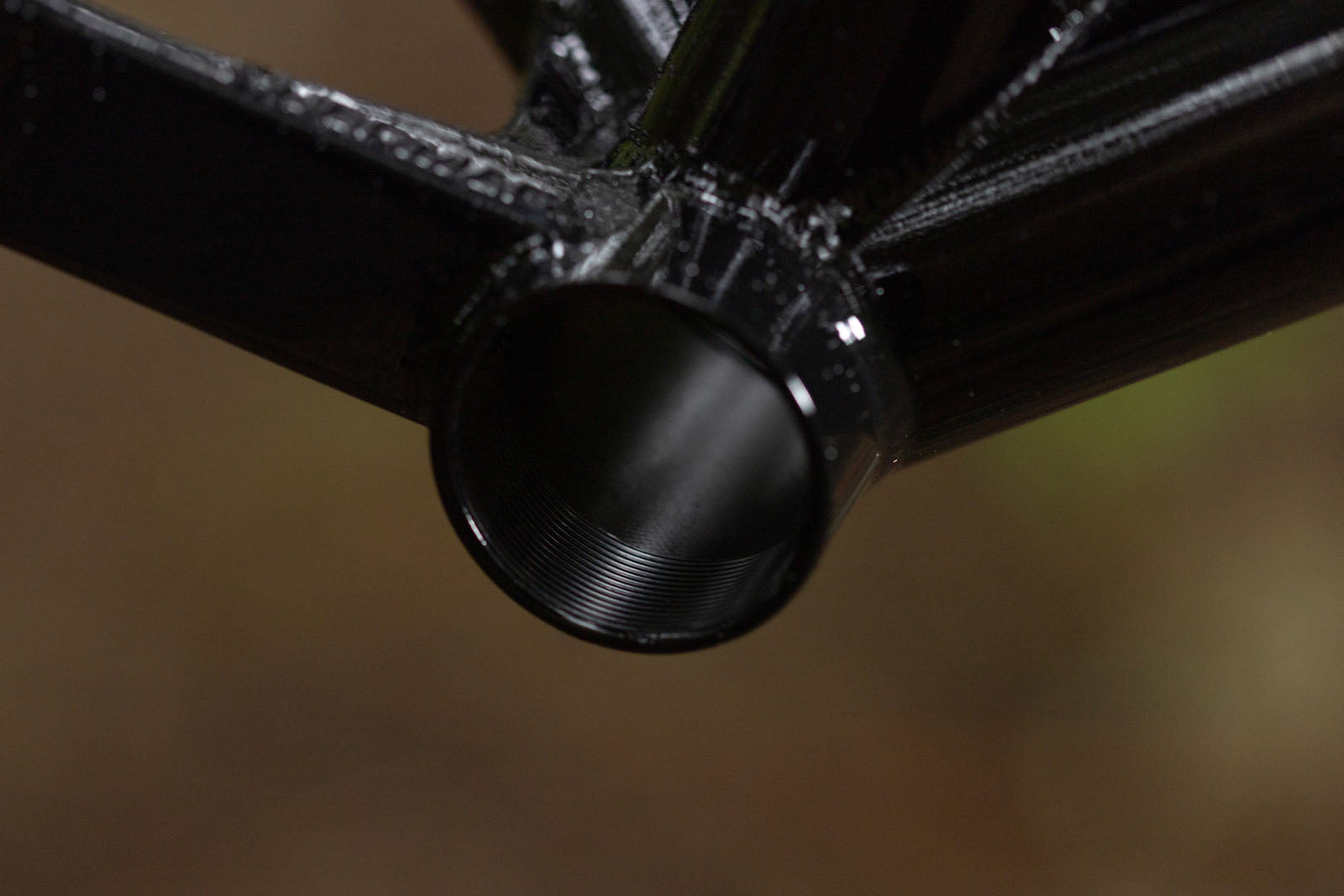

New on the series 6, are post brake mounts and 73mm threaded BB.

Post mount tabs reduce hardware and the need for adaptors. If you are running the stock 180mm rear rotor you won't need an adapter at all.

Designed for life

Yes, steel might be a little heavier than it's
more flashy contemporaries, but these bikes are built to last.  We use high grade 4130 Chromoly steel which is durable and contributes to a great feel as well.  Steel tubes are known for their compliance and lend a calm, vibration-absorbent feeling to the ride of the frame.

Steel can theoretically last forever provided it's ridden within the scope for which it was intended.

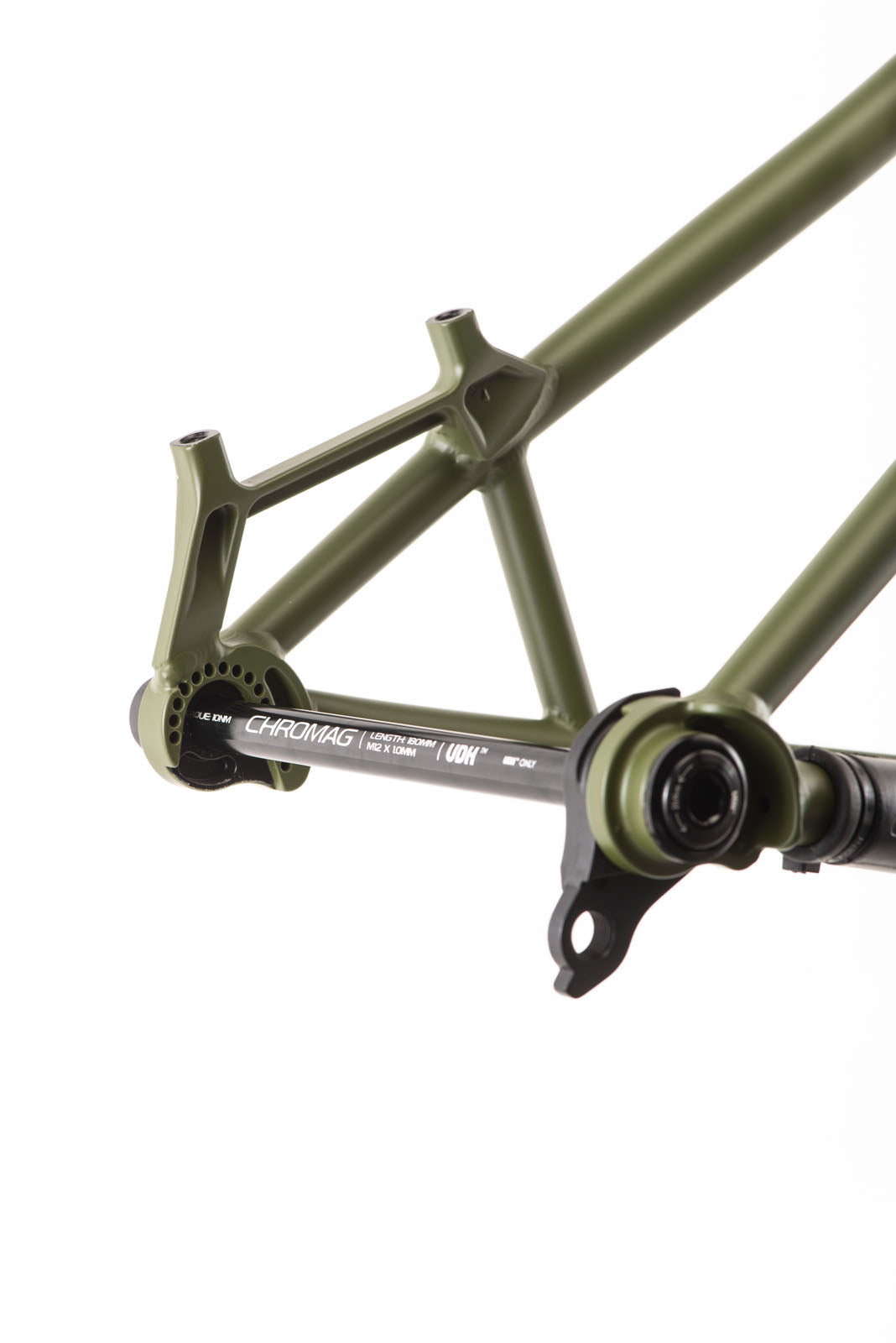

UDH

The UDH is designed to optimize shift performance across all bikes as well as create a sensible solution for replacing damaged hangers. The UDH has been widely adopted throughout the cycling industry with hundreds of models already featuring it.

Available here
assembly & care

Whether you get your bike in a box, or roll it out the front door here at Chromag HQ, you can rest assured your bike has been pored over with pride, and built with the utmost attention to detail by one of our extremely talented mechanics.

Threads are chased, seat tubes are reamed, head tubes are honed, fits are checked and checked again, all to make sure when you get your bike, everything is absolutely dialed.

The one stop shop aggro hardtail.

geometry

The Rootdown is the latest evolution of our take on an aggressive do it all hardtail. Comfortable enough for all day adventures and capable enough for any mission. Many have tried to impersonate the long standing Rootdown.

Show: |
Frame Size STypical Rider Height: 155cm - 165cm MTypical Rider Height: 163cm - 174cm M/LTypical Rider Height: 172cm - 183cm LTypical Rider Height: 181cm - 192cm XLTypical Rider Height: 190cm - 200cm
Stack630630639648657
Reach421446463487503
Effective Top Tube578603622648667
Head Tube105105105115125
Wheel base11771202122312511272
BB Drop50.850.850.850.850.8
BB Height320320320320320
Stand Over677714738762799
chain stay425425425425425
Seat Tube368406431456494
Max Post Insertion*188226251276314
Head Angle64°
Seat Angle76°
Wheel Size29''

* Max. post insertion based on Rockshox Reverb

THIS IS AN APPROXIMATE GUIDE, SOME PEOPLE HAVE LONGER LEGS THAN OTHERS!

Sizing

If you're between sizes, it's a good idea to try to ride them both, either by hopping on a demo or stealing from a close friend. If that isn't an option, examine reach, stack and ETT numbers on your current bike and compare. If in any doubt, please get in touch and we'd be happy to chat about it with you.

You could also check out the review section, to see how this bike fits other people.

Catch a rare glimpse of the rootdown out in the wild.

gallery

"The shop's go-to hardtail"

Questions?

Buying a bike is a big deal.
Don't hesitate to reach out with any and all questions!

Contact Us

Worldwide shipping

We ship bikes anywhere in the world with competitive rates from UPS and FedEx. Alternatively you can pickup right here at Chromag HQ.

Service Guide

Need more info on setup, service and spare parts?

View the user guide

Warranty

All of our bikes are backed by our 3 year warranty.

After that, we still have your back with our crash replacement program.

Register your bike

FAQ's

This is possible but does notably change the geometry. The change results in approximately 1° slacker head and seat tube angles, 20mm shorter reach and BB height 10mm closer to the ground.

A 2.5” Maxxis fits with appropriate room around it.

No, there are no ISCG mounts on the Rootdown [Series VI].

All our frames can work with +/-10mm of fork travel. To generalise the geometry change is around a 0.5° slacker head tube and seat tube angle for every 10mm added.

All geared hardtails run a standard boost chain line (52mm)

With a 52mm chainline (SRAM boost standard), the Rootdown [Series VI] can fit up to a 34-tooth chainring.

For context, most of us here are running a 30t, with a 10/52 cassette.

There is a serial number on the back of your fork arch, adding this to Rockshox Trailhead app along with your weight gives a good baseline setting.

Post mount brakes are a much more common standard these days, which means in most cases this negates the use of an adapter.

We were seeing a great deal of variation in diameter from BB manufacturers. This is very hard to account for with a press fit.

Threaded BB's (and threads in general) are much more standardised, which means less variance from one to another. Also, the action of tightening down the cup into the frame more easily accounts for variations in thread quality from different BB manufacturers.

We chase the BB threads on every frame, ensuring good fit with both OE and aftermarket bottom brackets.

It does, however the specific blend of steel we use (CR-MO) has very good corrosion resistant properties.

The Rootdown [Series VI] also has our ED coating inside and out which further helps protect it from the elements.

Nothing of note on this frame. Please let us know if you have tried to fit a more obscure component and faced issues.

Greasing you seat post prevents this issues, we strongly recommend re-greasing every 6 months at a minimum.

Not much! Here's what you need to do if we shipped your bike to you:

• Inflate tires to desired pressure. (Sealant is already installed)
• Install brake rotors, tightening bolts to 6.2Nm.
• Attach derailleur to frame, tightening to 9Nm making sure that the B-tension tab rests properly against the derailleur hanger stop.
• Grease headset bearings, install fork and handlebar, positioning the headset spacers above or below the stem according to rider fit.
• Align handlebar stem, preload headset and tighten stem pinch bolts to 8Nm.
• Install wheels, tighten axles.
• Install chain with quick link.
• Grease pedal threads and install pedals using pedal washers supplied.
• Adjust brakes, shifters, saddle position and height for personal preference.
• Set up suspension.
• Bed-in brakes. (Roll down a gentle gradient dragging one brake at a time. Avoid locking them up.)
• Go ride!

Note: If you had to Google "Nm", or you don't know which way to install your rotors, you should probably get a qualified mechanic to build your bike!

Here's what's been done:

• Chain length adjusted.
• Gears adjusted.
• Brakes set up and bled.
• Handlebar tightened to 6Nm.
• Grips tight on handlebar.
• Crankset tight, bottom bracket tight/adjusted.
• Saddle and seatpost tight.
• Seatpost greased *make sure to re-grease every 6 months!
• Tire sealant installed.
• Cassette tight.
