¥31,500 JPY Sale Save
MODEL ALLY REAR/XD
SIZE 29

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

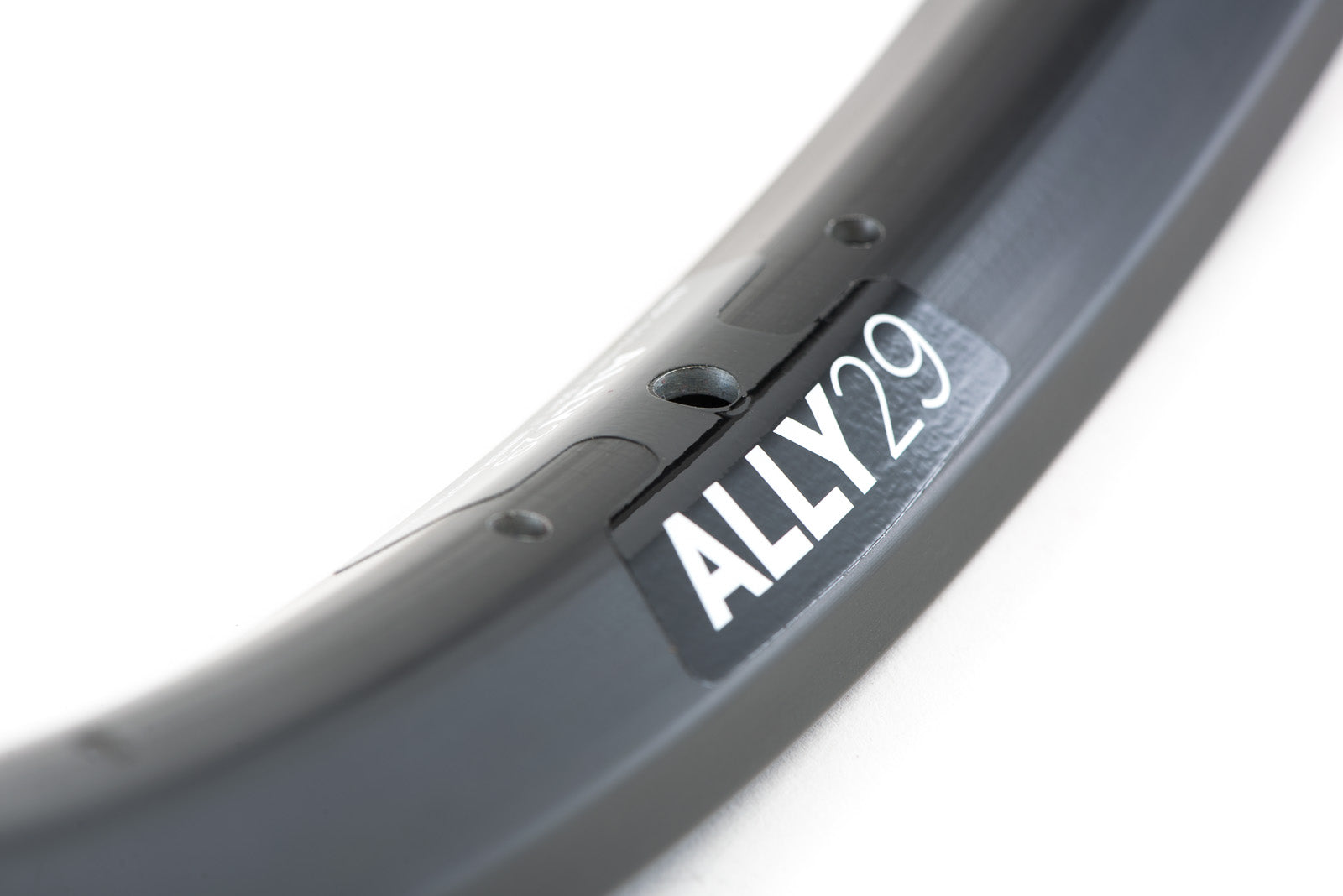

The Ally is our latest rim offering and is the workhorse of the fleet. Building off the BA30 and Phase30 design, the Ally offers the same robust beadwall and 30mm bed but in a pinned construction helping to keep the cost down.

The Ally shares the same cavity construction as the Phase30, with symmetric nipple drilling, designed to get you rolling on a budget.

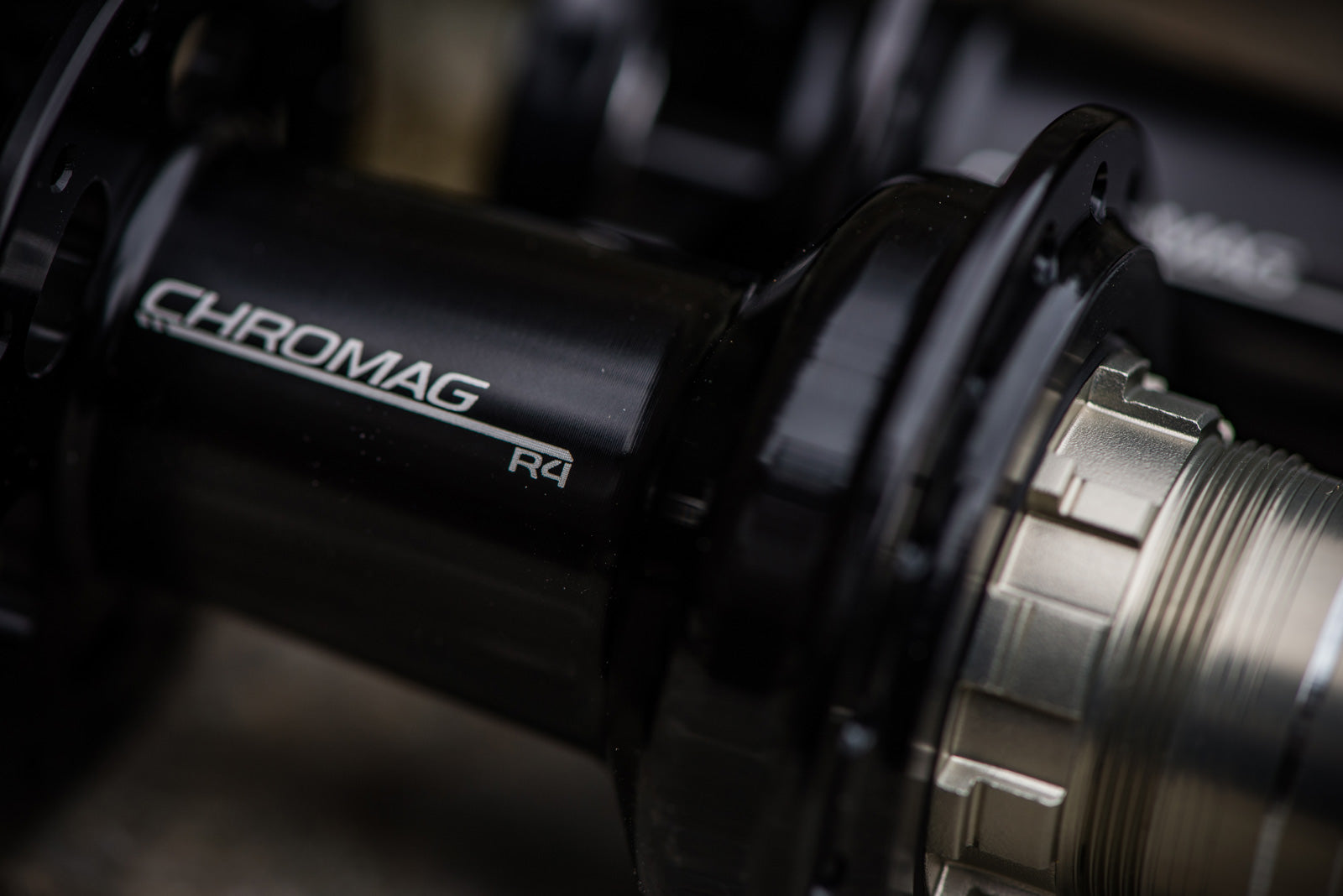

The rims are laced to our R4 hub. The R4 is designed to be a solid, reliable hub with a durable axle assembly and robust set of bearings.  We're using a tried and tested 4-pawl arrangement with 36 points of simultaneous engagement.  What sets it apart is the large radius that the pawls are positioned on, reducing leverage at the point of engagement.

We opted for a Chromoly steel axle for stiffness and longevity.  Using steel allows a smaller diameter axle which in turn gives us more room to use larger, sealed bearings (we use USA made enduro bearings).  The rear axle assembly uses thread-on end caps which are easy to service and resist compression from the frames axle (they don’t fall off during trailside repairs either!).  R4 front hubs are supplied with standard 'non-torque’ end caps and rear hubs are available with XD or HG driver bodies.

Use code: WheelieGood to receive $50 off when you buy a front and rear wheel.

☛ Rear wheel comes with your choice of XD, MS, or HG driver body
☛ Front wheel comes with Non-Torque endcaps as standard
☛ Torque (Rockshox) endcaps can be purchased additionally

Specs

Material // Premium extruded alloy

Finish // Anodised extrusion / Pinned

Profile // Cavity / Impact resistant design

Front Spacing // 15 x 110mm Boost

Rear Spacing // 12 x 148mm Boost

Rim Weight // 27.5: 585g / 29: 627g

Internal Width // 30mm

Valve // Presta

Max Tire Pressure 2.4" // 45PSI

Max Tire Pressure 2.8" // 30PSI

Max Spoke Tension // 125KgF

Build Info // 27.5" ERD: 564mm / 29" ERD: 602mm

Hole Count // 32
